We are pleased to offer a wide range of cable avoidance and survey equipment hire. All equipment is fully serviced and calibrated to manufacturer standards, with certificates available upon request. Contact us now for further details and availability for all your cable avoidance and survey equipment hire requirements.
Cable Avoidance & Survey Equipment Hire
GCAT & Genny Kit
- Supplied with Signal Generator Genny 4 & carry bag
- Internal GPS/GNSS receiver providing positional data logged every second
- Simultaneous dual frequency helps locating Small Diameter cables
- £25 per 5 day week
Standard Sonde
- Transmits on 33kHz
- 5M depth location
- Can be connected to a Flexrod
- Compact Sonde with a strong signal
- £15 per 5 day week

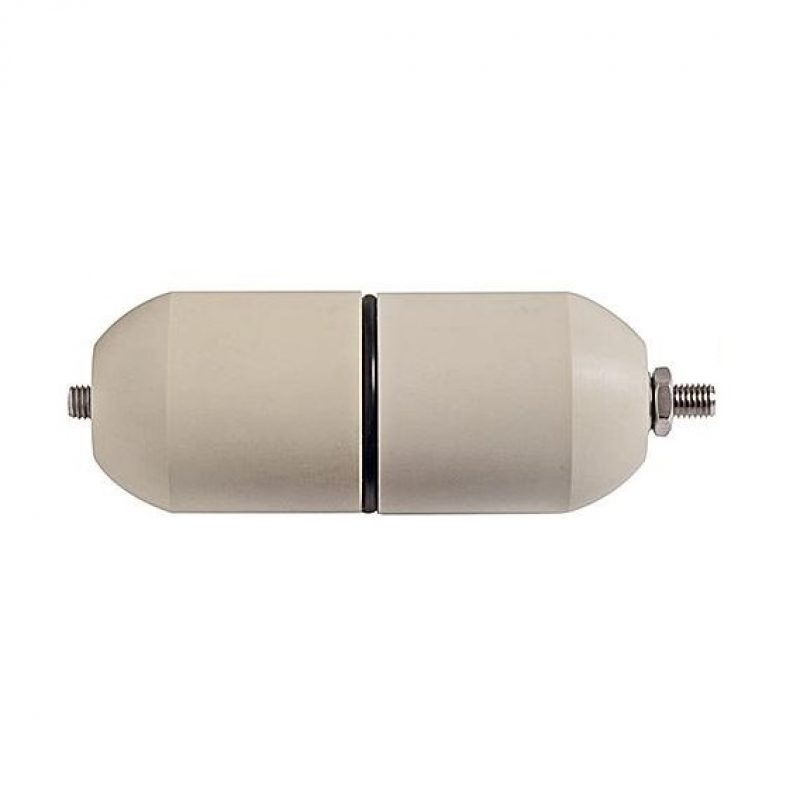

Sewer Sonde
- Transmits on 33kHz
- Can be connected to a Flexrod
- 8M depth location
- £20 per 5 day week

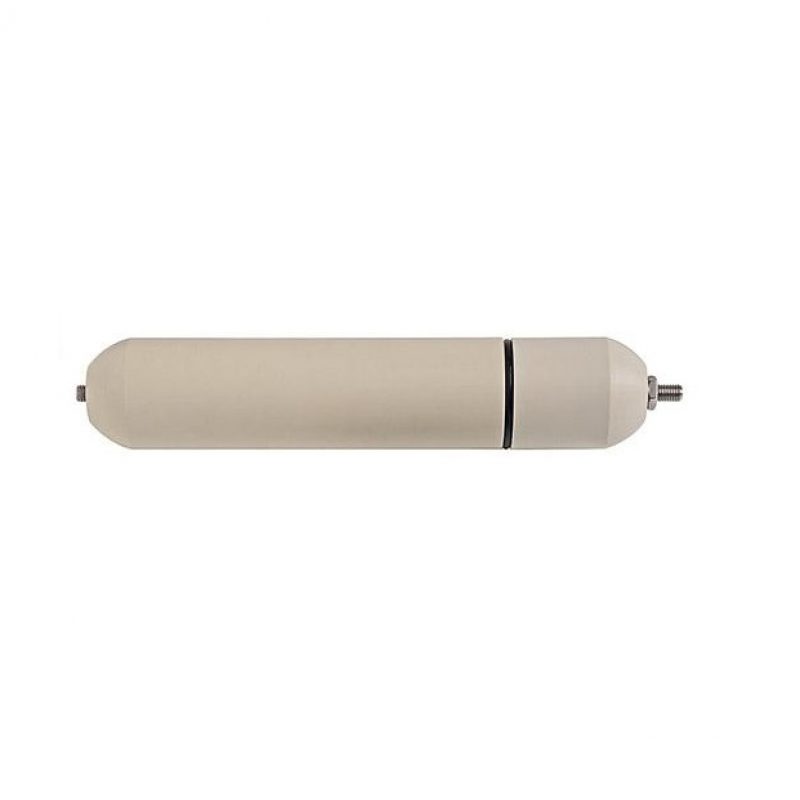

Super Sonde
- Transmits on 33kHz
- Can be connected to a Flexrod
- 15M depth location
- £25 per 5 day week
Optical Level
- Supplied with hard shell carry case, tripod and 5 meter staff
- Telescope image – Upright
- Magnification – 20 x24 x32 x
- Objective aperture – 36 mm
- Shortest target distance from instr. axis – <1.0 m
- Field of view at 100 m – <2.1 m
- Multiplication factor – 100
- Working range – -± 15’
- Setting accuracy (standard deviation) – <0.5
- Sensitivity – 8’/2 mm
- Graduation – 360°
- Graduation interval – 1°
- Weight (net) – 1.5 kg
- Operating temperature range – –20° C to +40° C
- £30 per 5 day week

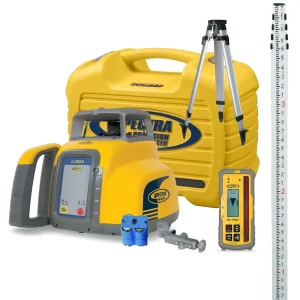

Rotating Laser Level
- Supplied with tripod, hard sheel carry case, rod eye & clamp and charging lead
- Supplied with 5 meter survey staff
- Operating Range 300m (1000ft) Diameter
- Self-leveling Accuracy* ±2.6mm at 30m (±3/32” at 100 ft)
- Self-leveling Range ±5°
- Rotating Speeds 10rps (600 rpm)
- H.I. or Elevation Alert function
- Automatic self-leveling mode
- £45 per 5 day week
Dual Grade Laser
- Supplied with tripod, hard shell carry case, remote control, rod eye & clamp and charging lead
- Supplied with 5 meter survey staff
- Operating radius: 1150ft (350m)
- Grade capability: Dual axis ± 15%
- Scanning modes: 10, 45, 90°
- RF remote control: 330ft. (100m)
- Self-levelling accuracy: 1/16″ per 100ft. (1.5mm per 30m)
- Grade accuracy: 1/8″ per 100ft. (3.0mm per 30m)
- Self-levelling radius: ± 5%
- Laser diode: 635nm
- Environmental: IP67
- £65 per 5 day week
Pipe Laser
- Supplied with hard shell carry case, remote control, targeting eye and charging lead
- -10% – +25% grade range
- Self-levelling range: -15 % to +30 %
- Off level warning
- Line and grade locks
- Lighted pivot point
- Strobe mode for increased visibility
- Battery life: 40hours
- Water-tightness and dust-tightness: IPX8
- £75 per 5 day week
 |
 |
